Best for
- Fixed 45-degree changes in a straight-form layout
- Matching the selected straight-form height at an angled corner
Form Accessories

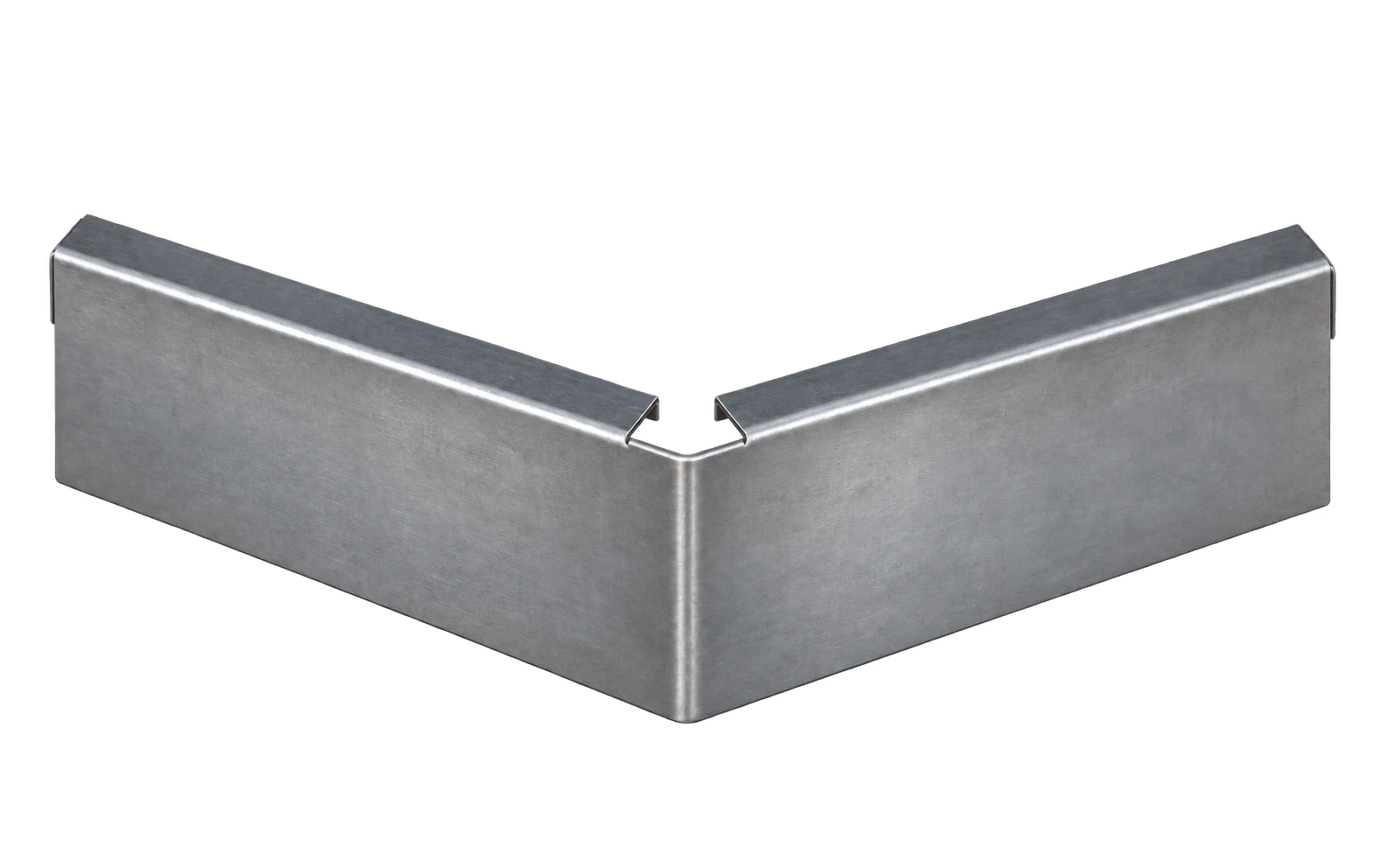

Fixed 45-degree Form Corners
Fixed 45-degree Form Corners
One-piece formed steel corners for fixed 45-degree direction changes in Ohio Metal Forms straight-form layouts. The corner has a 135-degree included angle. Choose the matching 4-, 6-, 8-, 10-, or 12-inch form height. Each quantity is one corner blade; forms, stakes, braces and seals are separate. Confirm the connection fit, sealing, stripping clearance and independent apex support for the intended setup before use. No load rating is established.
$70.00
Price per individual piece
Quantity (pieces)
Ordering several sizes? Use Quick Order →Ask about this selected size →What one quantity includes.One quantity is one fixed 45-degree steel form corner at the selected height.Choose the matching 4-, 6-, 8-, 10-, or 12-inch form height. The corner makes a 45-degree direction change with a 135-degree included angle.This page adds only the selected form pieces to your cart. Need pins, stakes, or other jobsite hardware? Call before paying.
Pickup or freight.Most forms are made to order. Typical production time is about 7–8 business days.Pickup is Monday–Friday, 8:00 a.m.–4:30 p.m. Pay online and wait for the ready-for-pickup email before arriving.A shipping estimate in a search listing is not your delivered quote. Checkout prices your complete order, delivery address, and unloading needs.A valid live carrier rate gives you the exact delivered total before payment; unavailable rates are saved for review.How freight pricing and pickup work →
- One-piece formed steel corner blade; no welds or holes
- Fixed 45-degree direction change with a 135-degree included angle
- Relieved top-center opening with no projecting tabs
- Nominal matching form heights: 4, 6, 8, 10 and 12 inches
- 12-gauge steel geometry; nominal sheet thickness 0.1046 inch
- Two 12-inch tangent arms with a formed shelf and return
- One individual corner per quantity; forms, stakes, braces and seals are separate
- Confirm connection fit, sealing and stripping clearance with the forms used on the job
- Independent apex support is required; no load rating is established
Plan before you buy
Make sure this is the right piece.
Before ordering
- Match the corner height to the straight forms
- Confirm the layout needs a 45-degree turn and 135-degree included angle
- Confirm the connection fit, sealing and independent corner support for the setup
Field notes
- Sold as one individual corner
- Choose the matching form height
- Forms, stakes, braces and seals are separate
- No load rating is established; the apex needs independent support
Sizes and per-piece prices
Compare every available size.
Selecting a size link opens this page with that exact option ready. Most forms are made to order; typical production time is 7–8 business days.
On a small screen, swipe or use arrow keys to review every column.
| Size | SKU | Price each | Choose |
|---|---|---|---|
| 4-inch height — fixed 45-degree corner | OMF-SFC-45-04 | $70.00 | Choose 4-inch height — fixed 45-degree corner |
| 6-inch height — fixed 45-degree corner | OMF-SFC-45-06 | $74.00 | Choose 6-inch height — fixed 45-degree corner |
| 8-inch height — fixed 45-degree corner | OMF-SFC-45-08 | $79.00 | Choose 8-inch height — fixed 45-degree corner |
| 10-inch height — fixed 45-degree corner | OMF-SFC-45-10 | $84.00 | Choose 10-inch height — fixed 45-degree corner |
| 12-inch height — fixed 45-degree corner | OMF-SFC-45-12 | $88.00 | Choose 12-inch height — fixed 45-degree corner |
Unsure about fit or quantity?
Talk to the people who make it.
Call with the form height, planned footage, number of corners, and whether the job includes curves. We can help review the list before you pay.
Complete the system
Related forms and accessories
Form Accessories

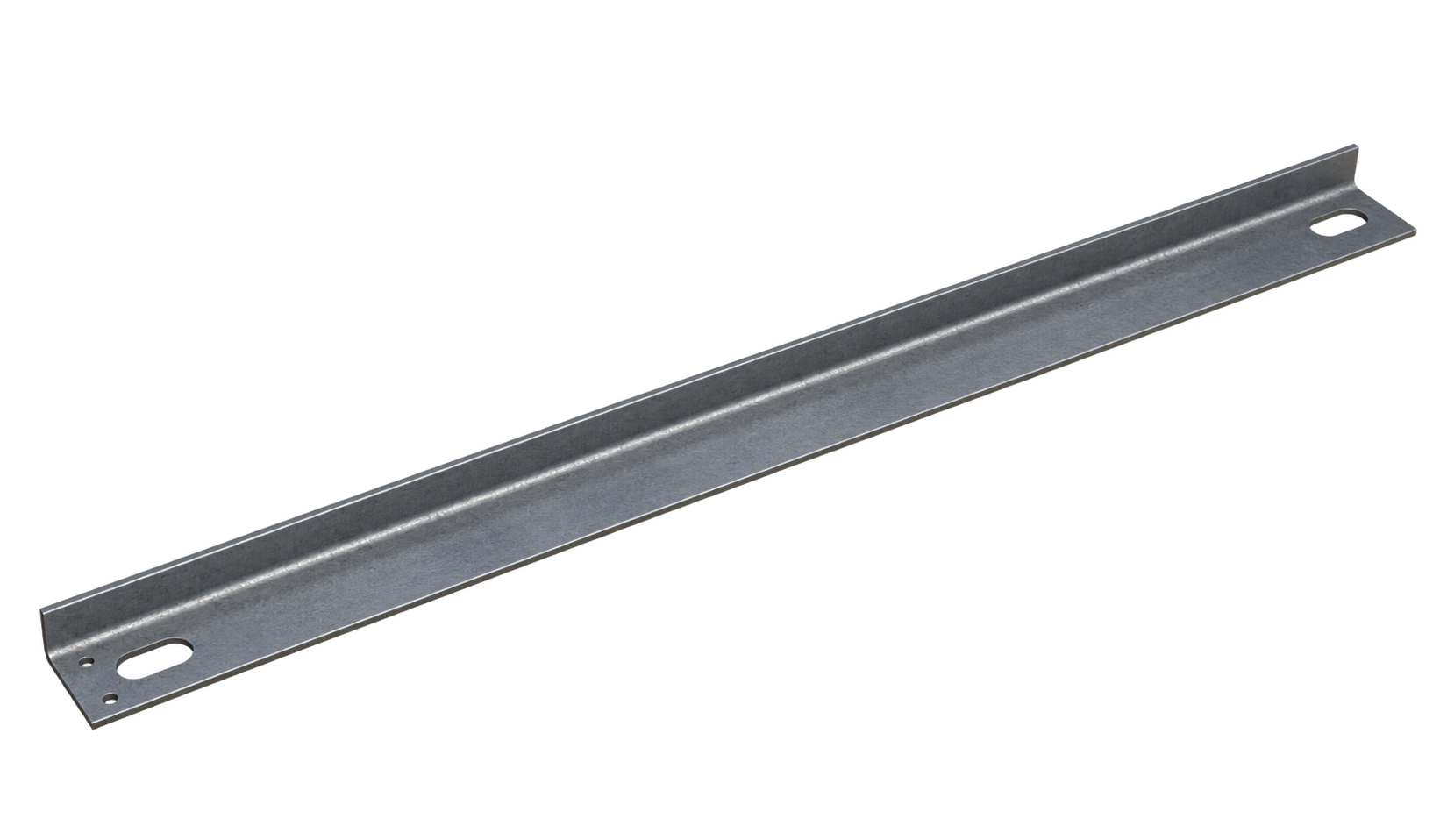

Ohio Metal Forms Formed Braces
