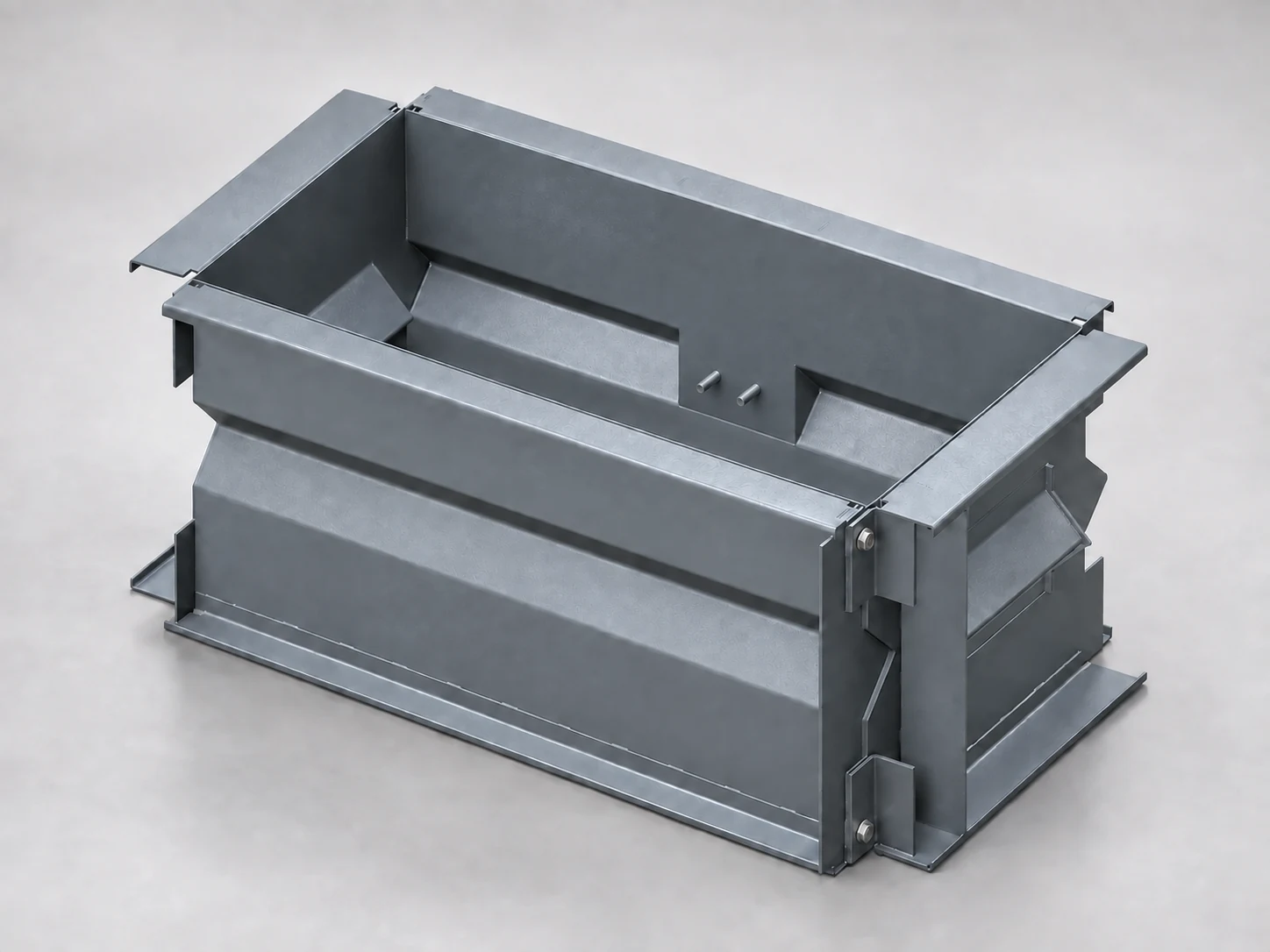

Generated product visualization of the 4-foot steel concrete block mold. The included removable recess former is omitted to show the mold interior.

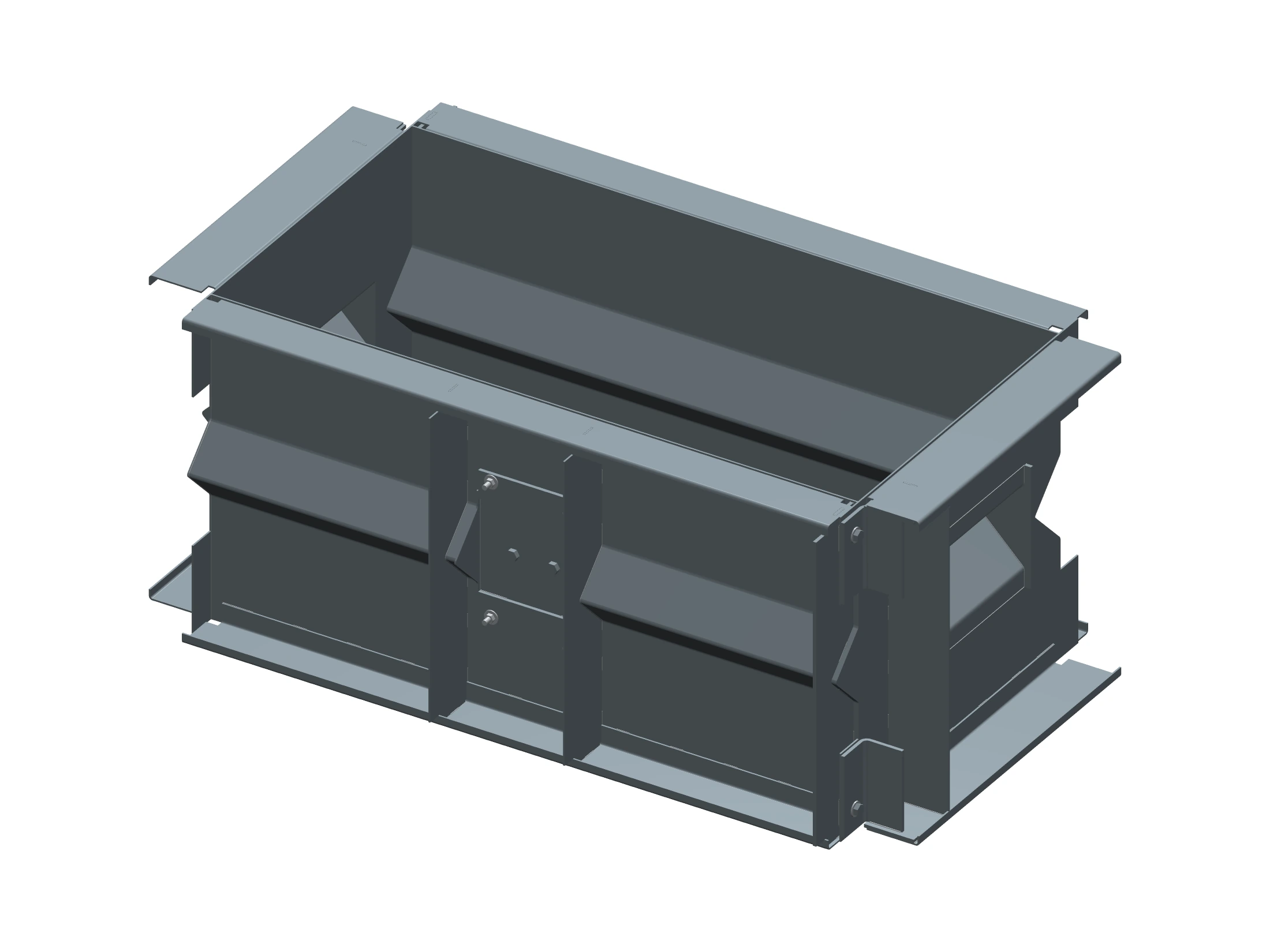

Generated product visualizations and CAD detail views. The reusable recess former is included but omitted from the main image. The illustrated recess is simplified; the supplied former determines the final pocket shape.
Concrete Block Molds

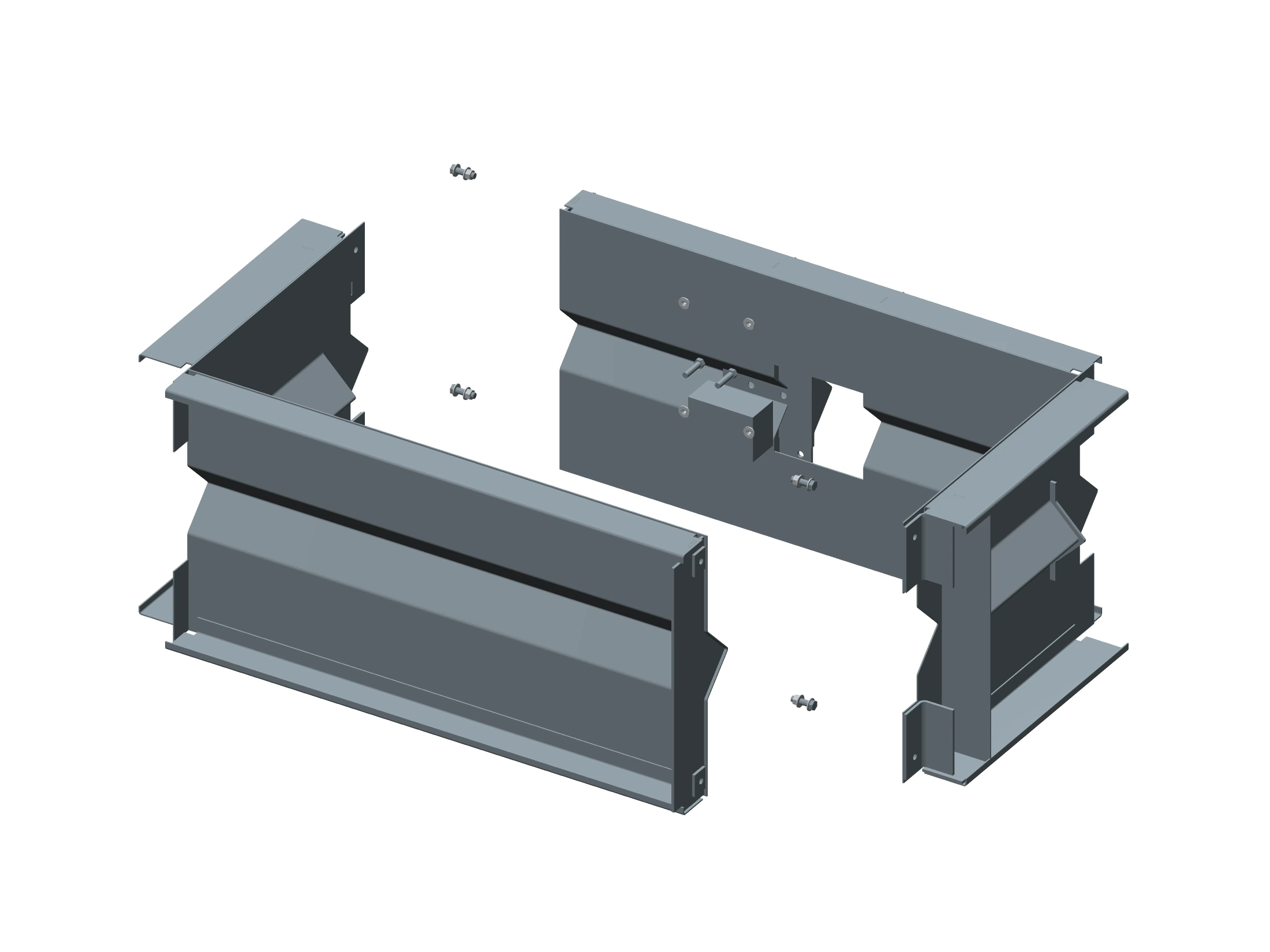

Put surplus concrete to work. Cast 4 ft × 2 ft × 2 ft nominal interlocking blocks in a reusable steel mold made by Ahner Industrial in Sandusky, Ohio. Four-face V keys form mating top, bottom and end profiles. The two mold halves separate after the corner hardware and removable anchor-recess holder are released. The reusable recess-former kit is included. Ships with the two fully welded L-shaped halves bolted together on one pallet, with closure hardware included. The anchor-recess holder and former are protected inside for shipment; fit them before casting. No customer welding is required. Delivery pricing is calculated at checkout using your address and unloading needs. A valid automatic rate gives you the exact delivered total before payment; unavailable rates and tax-exempt freight requests are saved for review. Pickup is also available.
Price per complete mold
Specifications
Your mold, ready for repeat casting

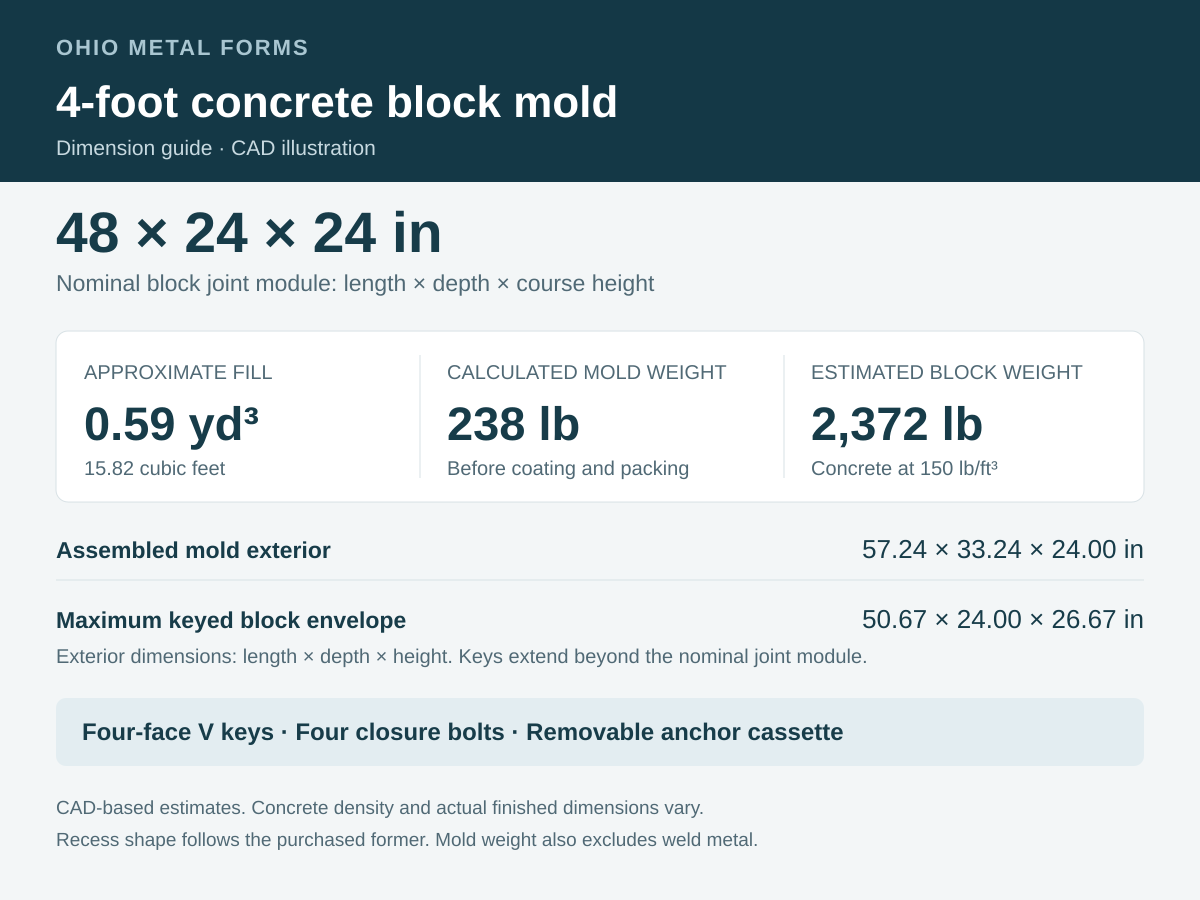

Each full 4-foot mold takes approximately 0.586 cubic yard of concrete.
Order the number of molds you need to fill at the same time. You are purchasing a reusable mold; concrete blocks are not included.
Ships with the two fully welded L-shaped halves bolted together on one pallet, with closure hardware included. The anchor-recess holder and former are protected inside for shipment; fit them before casting. No customer welding is required.
Delivery pricing is calculated at checkout using your address and unloading needs. A valid automatic rate gives you the exact delivered total before payment; unavailable rates and tax-exempt freight requests are saved for review. Pickup is also available.
Estimated package: 60 × 36 × 32 in, approximately 325 lb including packing.
These are freight-pricing estimates. We confirm the actual packed shipment before dispatch. Enter your unloading requirements at checkout.
From surplus concrete to a keyed block

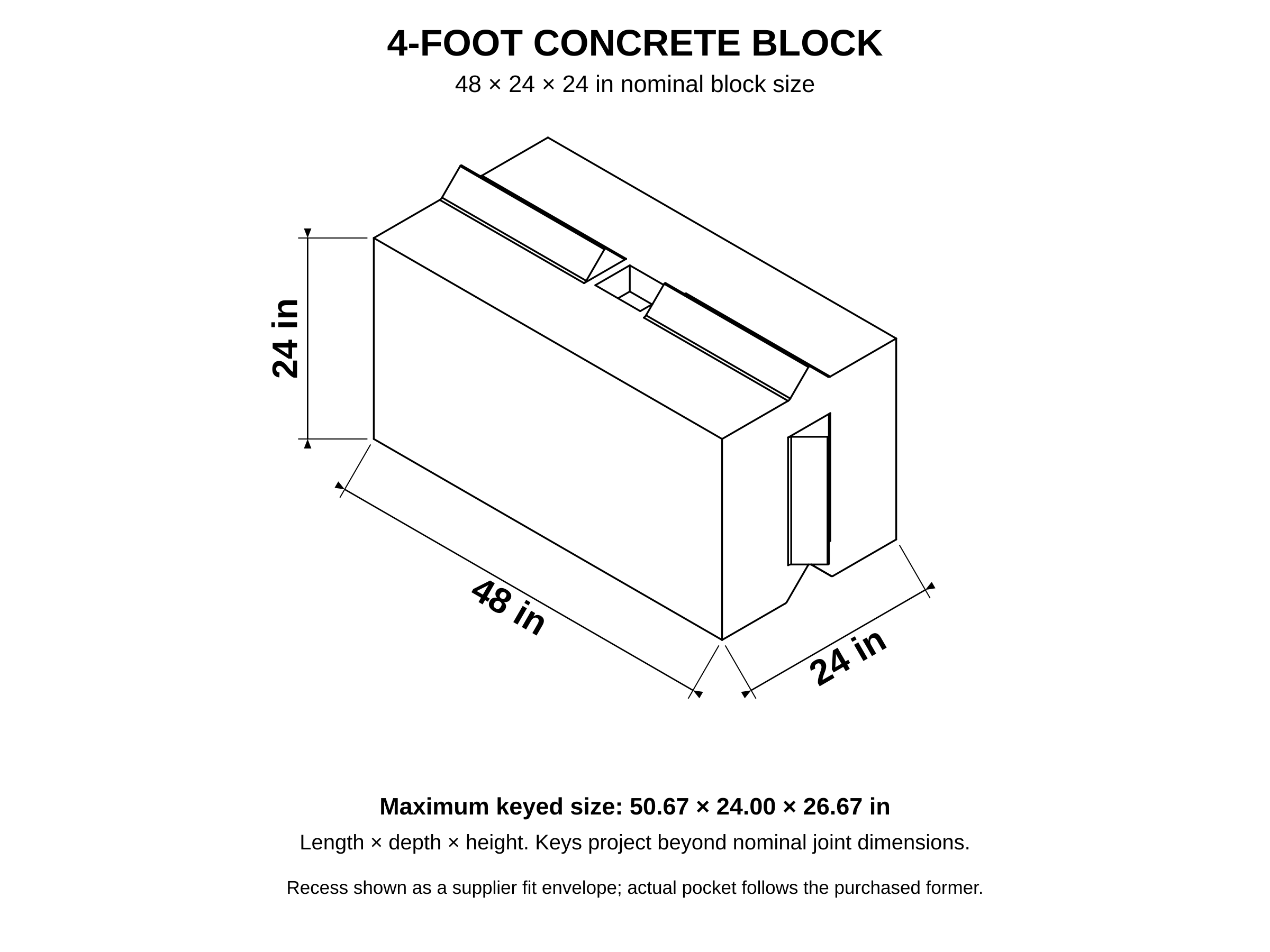

The mold creates complementary V profiles on the top, bottom and ends. Nominal dimensions describe the joint spacing; the projecting keys extend beyond those dimensions.

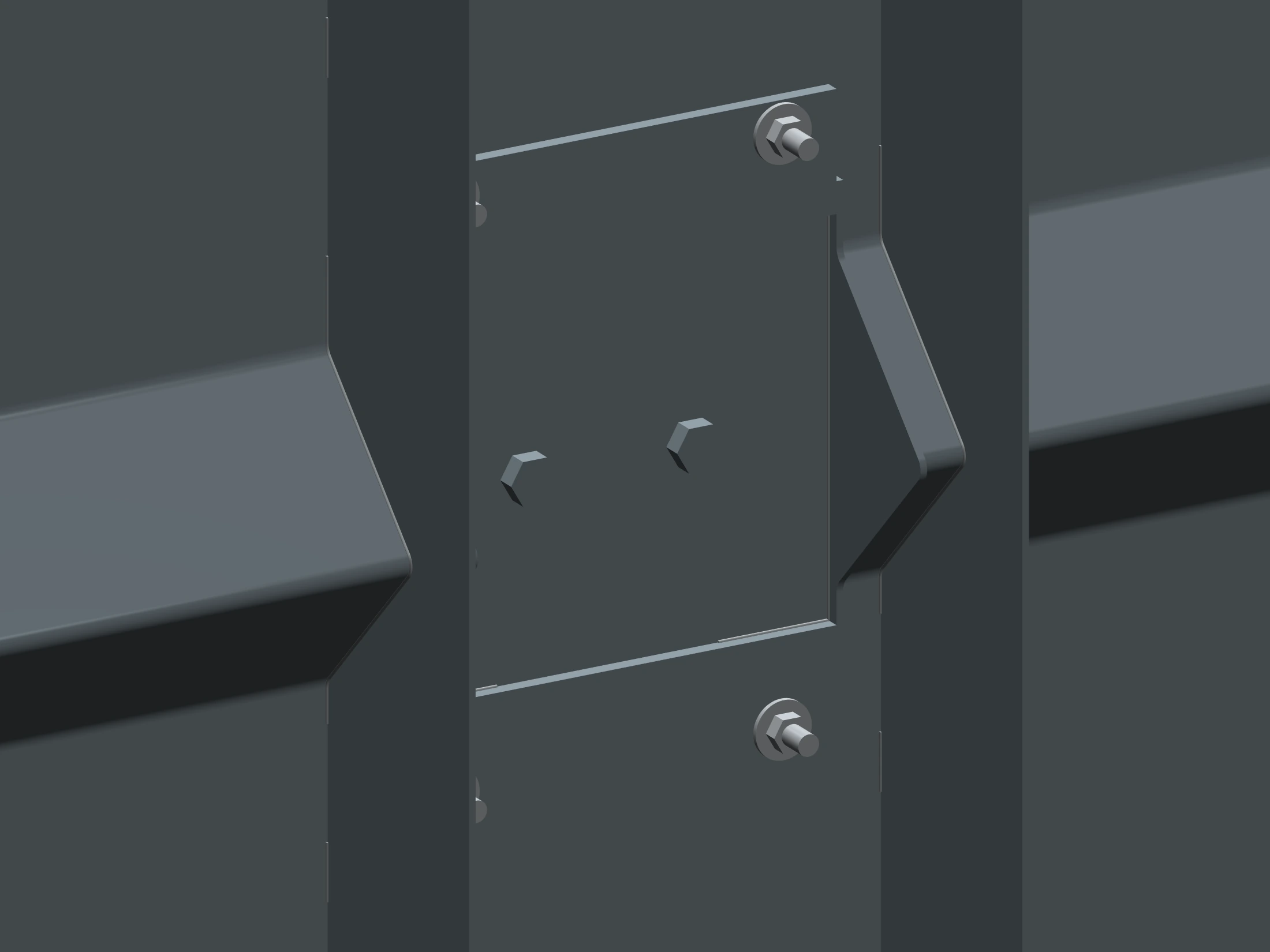

The reusable recess former, steel holder and mounting hardware are included. The anchor cast into each block is separate. Select the complete lifting system for the actual concrete and block; the mold itself supplies no lifting rating.
Block layout, foundation, drainage, wall height and loading need a project-specific design. Waterfront and shoreline projects also need that review; purchasing a mold does not establish suitability for those conditions.
Plan before you buy
Size and complete-mold price
Selecting a size link opens this page with that exact option ready. Made to order in Sandusky, Ohio. Confirm the current production schedule before ordering.
On a small screen, swipe or use arrow keys to review every column.
| Size | SKU | Price each | Choose |
|---|---|---|---|
| 4 ft × 2 ft × 2 ft nominal block — complete mold | OMF-BM48 | $864.00 | Choose 4 ft × 2 ft × 2 ft nominal block — complete mold |
Unsure about fit or quantity?
Call with the block size, number of molds, planned use, delivery ZIP code and unloading equipment. We can confirm the mold package and current production schedule.
